What is Prometheus?
Prometheus is a complete energy harvesting module for rapid prototyping and production. It can power your device directly, or recharge a battery or supercapacitor.
How it works
Prometheus converts thermal energy between small temperature gradients into useful electrical output.
Applications
Details
Each Prometheus module integrates a MATRIX Gemini Thermoelectric Generator (TEG) with a MATRIX Mercury Energy Harvesting Boost Converter.
This patented technology ensures perfect electrical impedance matching between the TEG and its companion Boost Converter. Such integration enables Prometheus to produce much greater output current than equivalent competitive solutions under identical conditions.
The Numbers
Because Prometheus offers several maximum output voltages (VOUT) between 2V and 5V it can directly power integrated circuits and charge various battery chemistries without the need for additional charger circuitry.
Each module’s integrated VOUT regulation prevents voltage overshoot, securing reliable operation with various battery types.
Resource Downloads

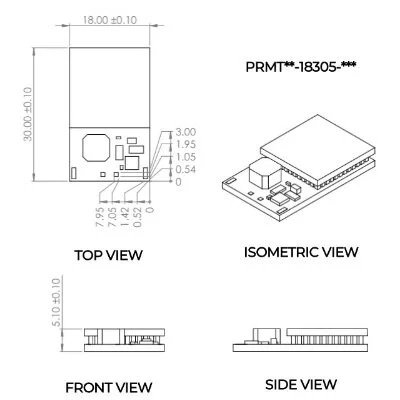

18305 Module Dimensions
34465 Module Dimensions
Features and Benefits
Highest performance
Produces a much greater output current than equivalent competitive solutions under identical conditions
Starts up from a temperature difference as low as 0.5°C
Operating temperature range of -40°C to +85°C, satisfying common industrial and commercial operating requirements
Highly integrated thermal energy harvesting modules
Combines high performance TEG with world’s most efficient energy harvesting boost converter
Perfect electrical impedance matching
Easy to use
Select the appropriate thermal impedance for application
Add heat sink and mount to heat source
No additional charger circuitry
Works with a variety of battery types
Evaluation Kits
Prometheus evaluation kits are available for wearables, watches, as well as small and large IoT devices. Each comes with modular interfaces, heatsinks, and instructional videos.
Each Prometheus module integrates a MATRIX Thermoelectric Generator (TEG) with a MATRIX Energy Harvesting Boost Converter. This patented technology ensures electrical impedance matching between the TEG and its companion Boost Converter.
